90 Extruder Machine For 16mm 25mm Cable Extrusion Production Wire Making

Main features of machine

This equipment is applicable to outer surface extrusion of wires and cables for insulation materials such as PVC

Technical Characteristics

Extrusion Wire Gauge: Inlet Wire Diameter:

Finished Wire Diameter: Φ10 mm～Φ40mm, for 10 square mm, 16, 25,35,50,70,95,120 squre mm

Applicable Material: PVC,PE

Screw Diameter: Screw Diameter 90mm

Extrusion Capacity (When the head is turned on.): Φ90 Machine=max260 kg/h

Linear Velocity: 5～150m/min

Length of Production Line: 32 Meters

Installed Capacity: About 92KWh

Color: Grass Green

List of machine

Brand of parts

1.Motor is Siemens.

2.Temperature control: RKC

3.Relay:Omron

4.Touch screen: Siemens

5. Bearing:NSK

6. Inverter:Yaskawa

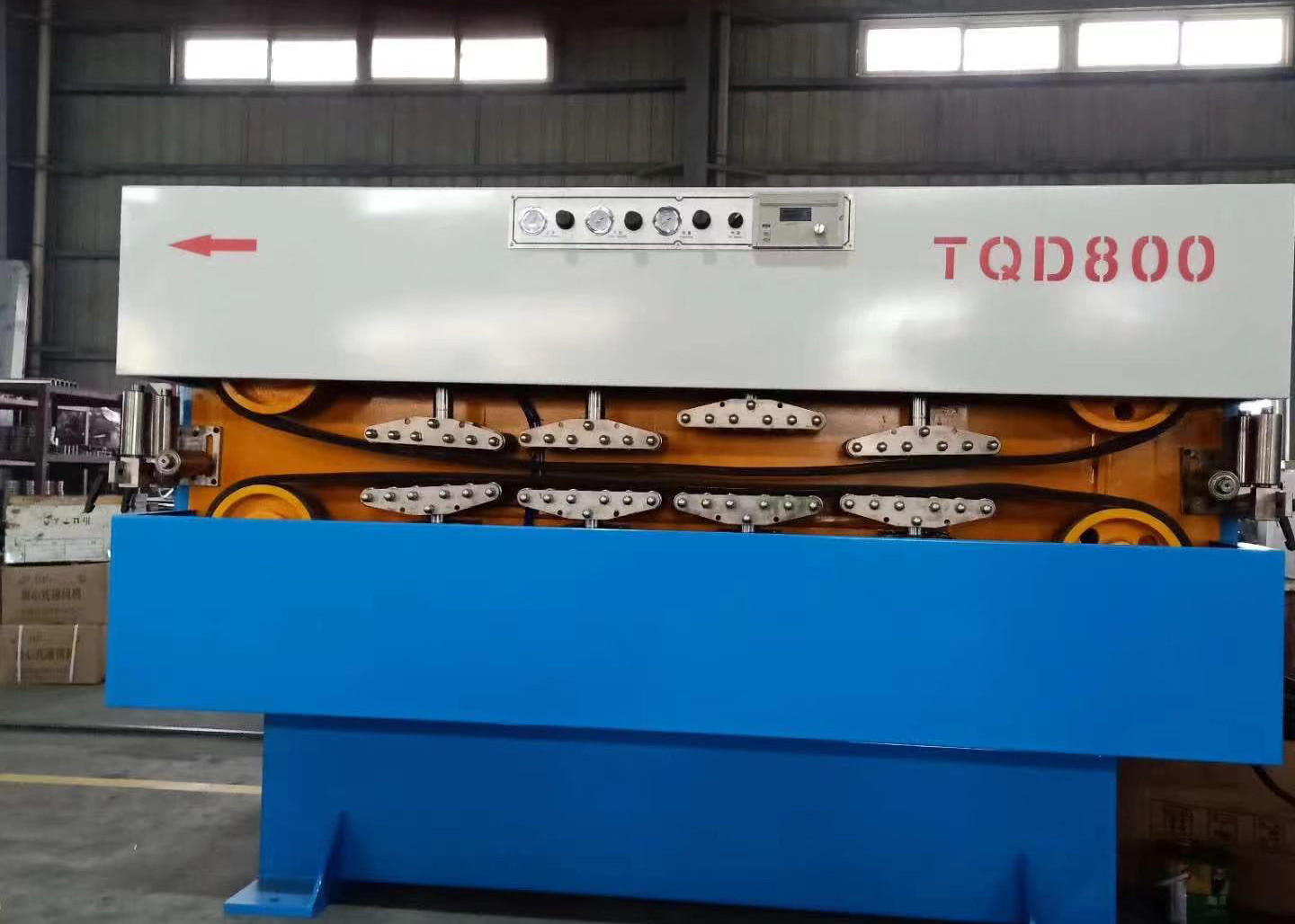

Accessory Parameters

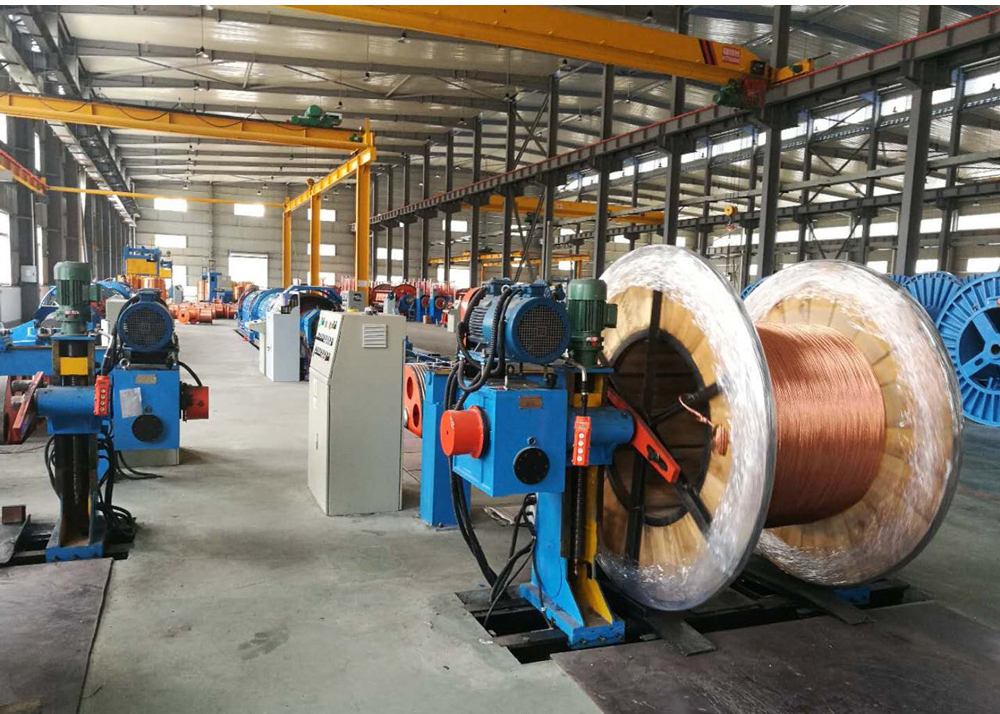

1200～2500 Side-axis Pay-off Frame

1 .Type: Side-axis

2 .Maximum Load: 10000KG

3.Bobbin Lift: 1.5KW Motor + Drive Screw Lift

4. The distance between two columns can be moved by the bobbin’s width

, Motor + Drive Screw Lift.

5. Two take-up columns are cast iron pieces.

6.Payoff Device with Tension

90mm Extruder with cross head

Applicable Material: XLPE, Plasticization degree of 100%.

Maximum Extrusion Capacity:260kg/hr.

Mechanical Center Height: 1000mm

Ratio of Length and Diameter: 1:25

Compression Ratio: 1:2.8

Rotation Rate of Screw: 0—70 RPM

Material of Screw: One Ø90mm screw with

whole tooth nitrogen treatment of alloy

steel and chrome-plated polished surface and screw-passing cooling water device.

Material of Screw Cylinder: 38CrMoA1A alloy steel, nitrogen treatment and precisely

grinding. The surface hardness inside the screw cylinder is R2-3 degree higher than

that of the front surface of the screw and the screw thread. The cooling water jacket is

added on the feed point of the screw cylinder.

Gearbox: Imitation of Italian-type, hardened helical gear gearbox, material of cast

steel, oil-bath lubrication, tooth-face high-efficiency quenching and adoption of

Japanese NACHI bearing.

Electric Heating: 380V, with even three-phase separated flow.

Screw cylinder electric heating zone 5, the cast aluminum heating ring heating is

affixed with cooling air duct.

Head electric heating zone 1, heating by cast aluminum heating ring.

Neck electric zone 1, heating by the electro-thermal tablets.

Eye die electric heating zone 1, heating by the electro-thermal tablets.

Control of Temperature: Use the PID automatic temperature control gauge made

in Yangming, Taiwan, automatically set the control under 0-399℃ and use KTYP as

the thermal-couple.

Cooling: Screw cylinder zone 5, use 5 sets of cooling fans (370W).

Head: Vacuum equipment head

Host Motor: The motor drags with 37KW. The inverter controls and unloads by

synchronization. The velocity adjustment is convenient and steadily operated.

YUYANG MACHINE Co., Ltd. Was established in Dongguan city which is close to Guangzhou city in the year of 2009.

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, copper drawing machine , coper oven, copper enameling machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;

120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line...

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,

We have engineer who have more than 20 years experience in cable area, who will provide our customer the best suggestion when they are planing building new factory. We will tell you which machine is the best for your cables. And we will give customer’s training when they buy machines from us. We will install the machine, train their workers and give our professional advice for their cable project.

We already help customer to set up new cable factory in some country like Algeria, Nigeria, Sudan, India. . . . And we already sell machines to Pakistan, Egypt. . . . . .

We have good reputation from our customer, and if you need build new factory or add machines in your factory, then contact us, also if you have some problems in your cable production line such as PVC come out, copper is with center deviation , can not get good tension or right twisting pitch, or other problem then contact us too.
