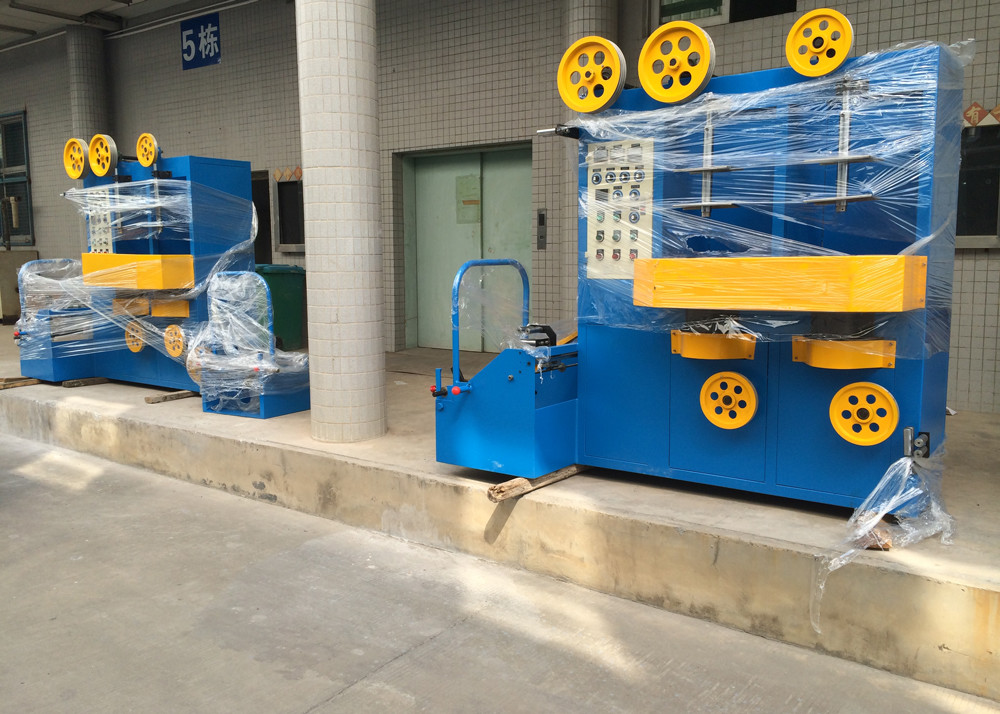

High Speed 630 PVC / PE Core Cable Wire Tapping Machine Line

630 double layers tapping machine

Used:The applicable PVC / PE core wire or strand Wraps with

Adapt diameter:φ1mm～φ5mm

The speed of main axis:2000Rpm

The speed of wrap: 5～50m/min

The pitch of wrap: 10～40mm or adjustable according to your requirement

The direction of wrap: From S to Z and it can change according to your need.

Single-action and linkage:Every head package tray can be used alone or linkage and adjust the pitch

Driving power: wrap, 2 sets 1HP motor. Main machine: 1 set 2HP motor.

winding displacement: φ20 The cable rod winding displacement

Take up bobbin size: OD φ400～φ630

Wrap:adapt material: 1) mica tape,tissue paper,Mylar,aluminum foil and so on.

2) Diameter:φ250mm, Width:5～20mm, Inner hole φ5

Pay off:the φ800 single head Japanese line planes, mechanical brake band tension

Take up:φ800 single head magnetic tension closing line machine

NACHI bearings used in Japan , a few meters table TOYO, Taiwan Shihlin , contactor ,

switch button Taiwan days in relay Omron of Japan and its main electrical components imported from Taiwan , Japan

YUYANG MACHINE Co., Ltd. Was established in Dongguan city which is close to Guangzhou city in the year of 2009.

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, copper drawing machine , coper oven, copper enameling machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;

120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line...

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,

We have engineer who have more than 20 years experience in cable area, who will provide our customer the best suggestion when they are planing building new factory. We will tell you which machine is the best for your cables. And we will give customer’s training when they buy machines from us. We will install the machine, train their workers and give our professional advice for their cable project.

We already help customer to set up new cable factory in some country like Algeria, Nigeria, Sudan, India. . . . And we already sell machines to Pakistan, Egypt. . . . . .

We have good reputation from our customer, and if you need build new factory or add machines in your factory, then contact us, also if you have some problems in your cable production line such as PVC come out, copper is with center deviation , can not get good tension or right twisting pitch, or other problem then contact us too.
