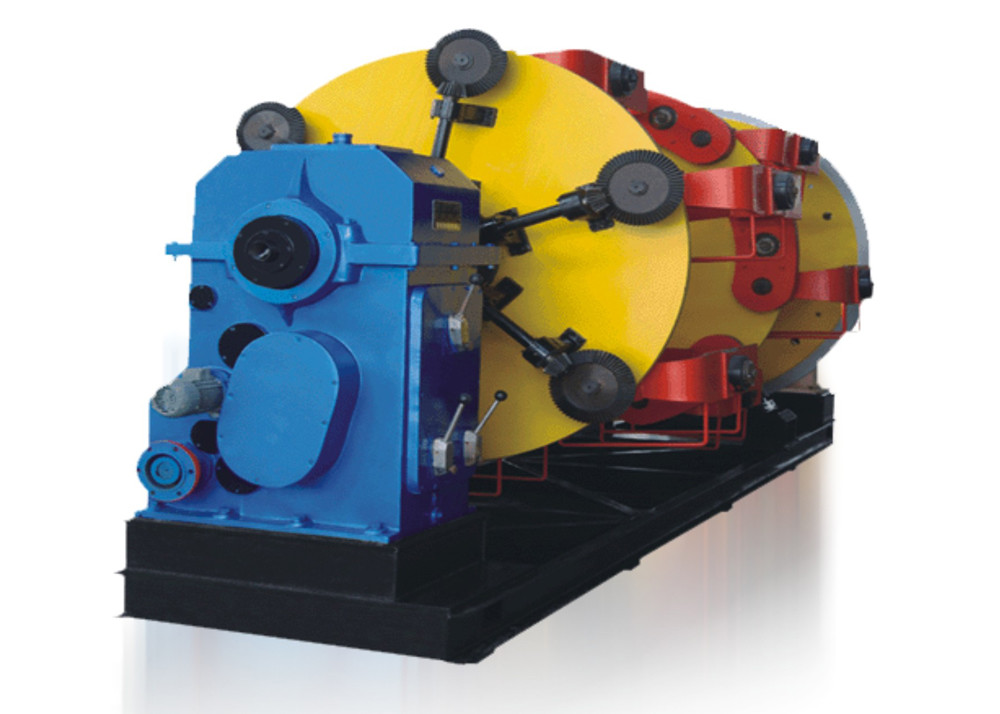

High Quality Cage Type Planetary Wire Cable Stranding Machine With Back Twist

The machine is mainly used for stranding bare conductors and insulated wires up to 30 strands.

Main technical parameters:

1.1 Single wire Dia. Copper: Φ1.5-Φ5.0mm / Insulated wire: Φ2-Φ7mm

1.2 Max stranded Dia. Ф50mm

1.3 Stranding pitch range 68-1250mm

1.4 Max cage rotate speed 12B: 70RPM / 18B:55RPM

1.5 Max line speed 30m/min

1.6 Capstan wheel diameter Ф1500mm

1.7 Central pay-off bobbin Ф500mm

1.8 Pay-off bobbin in stranding cage Ф500mm

1.9 Take-up drum Ф1000mm-Ф2000mm

1.10 Main motor power 55KW,380V,50Hz,AC motor

1.11 Central height of machine 1000mm

Components:

1.1 Ф1600mm column type pay off 1 set

• Ф500/12+18 bobbins cages 1 set

1.3 Wire-stranded die holder 2 sets

1.4 Meter counter 1 pc

1.5 Ф1500mm double capstan wheels 1 set

1.6 Ф2000mm column type take-up and traverse 1 set

1.7 Transmission system 1 set

1.8 Electric control system 1 set

1.9 Safe fence 1 set

Main parts brand:

Main motor:SIEMENS Beide

Inverter:YASKAWA

Main low voltage electrical Components:Chinese famous brand

Main bearing:Chinese famous brand

Pneumatic elements:Chinese famous brand

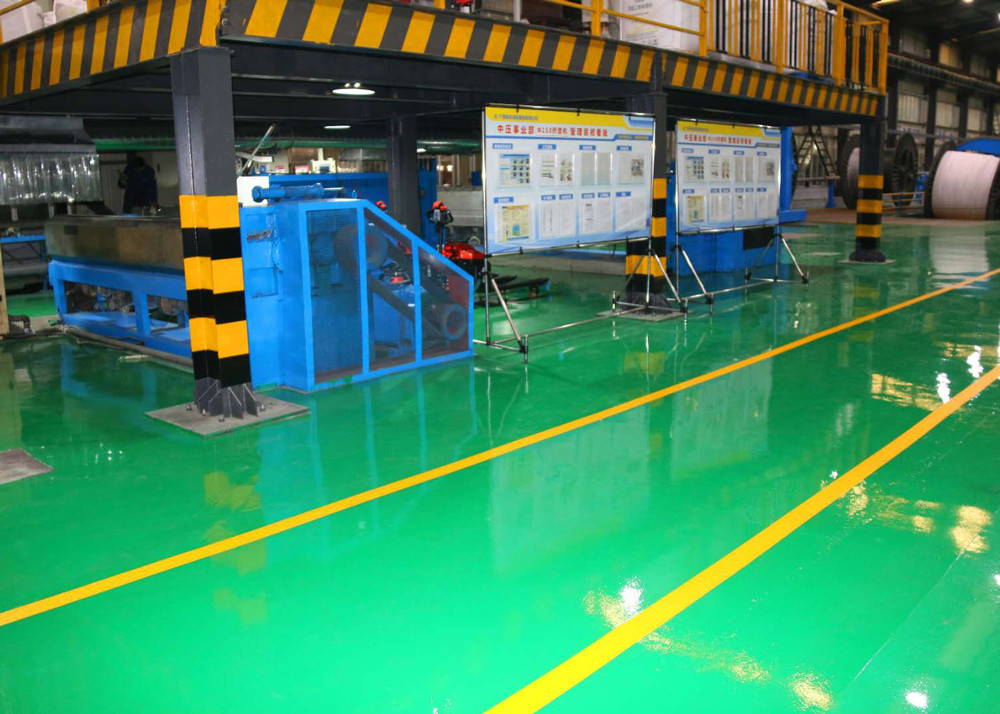

YUYANG MACHINE Co., Ltd. Was established in Dongguan city which is close to Guangzhou city in the year of 2009.

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, copper drawing machine , coper oven, copper enameling machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;

120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line...

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,

We have engineer who have more than 20 years experience in cable area, who will provide our customer the best suggestion when they are planing building new factory. We will tell you which machine is the best for your cables. And we will give customer’s training when they buy machines from us. We will install the machine, train their workers and give our professional advice for their cable project.

We already help customer to set up new cable factory in some country like Algeria, Nigeria, Sudan, India. . . . And we already sell machines to Pakistan, Egypt. . . . . .

We have good reputation from our customer, and if you need build new factory or add machines in your factory, then contact us, also if you have some problems in your cable production line such as PVC come out, copper is with center deviation , can not get good tension or right twisting pitch, or other problem then contact us too.
