Chinese Brand New 3mm To 0.4mm Intermediate Wire Drawing Machine With Annealer For 1.5 2.5 Electric Cable

Main features of machine

With double motor driven, PLC touch Screen control the system.

Inlet copper size 3.5mm--3.0mm,

Outlet copper size from 0.8mm to 2.7mm.

With 630 double heads auto-take up.

Weight of machine: 16 tons

Space for the machine: 22m(length)*4.5m(width)*4.5m(height)

Electricity capacity : 250KVA

Raw material: copper (up 99.5%)

Molds: one set of molds can finish all the size.

Production speed:

List of machine

Brand of parts

1. Temperature control: RKC (Japan)

2. Bear: NSK (Japan)

3. Motor: Service motor, Siemens

4. PLC: Siemens

5. Reducer:CPG (TaiWan)

6. AC convertor (YASKAWA)

7. Button: Schneider

8. Contactor: YangMing(TaiWan)

9. Intermediate relay: OMRON

Pay off machine

Using the pay-off stand to guide the copper busbar to provide the host for continuous stretching, Height is 3200mm,

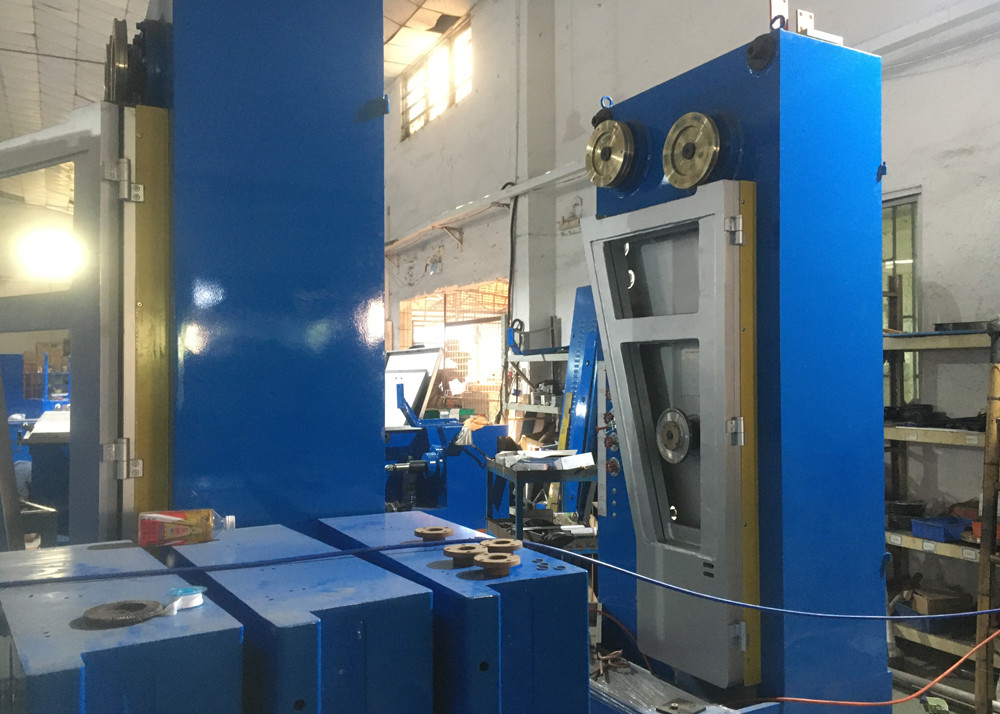

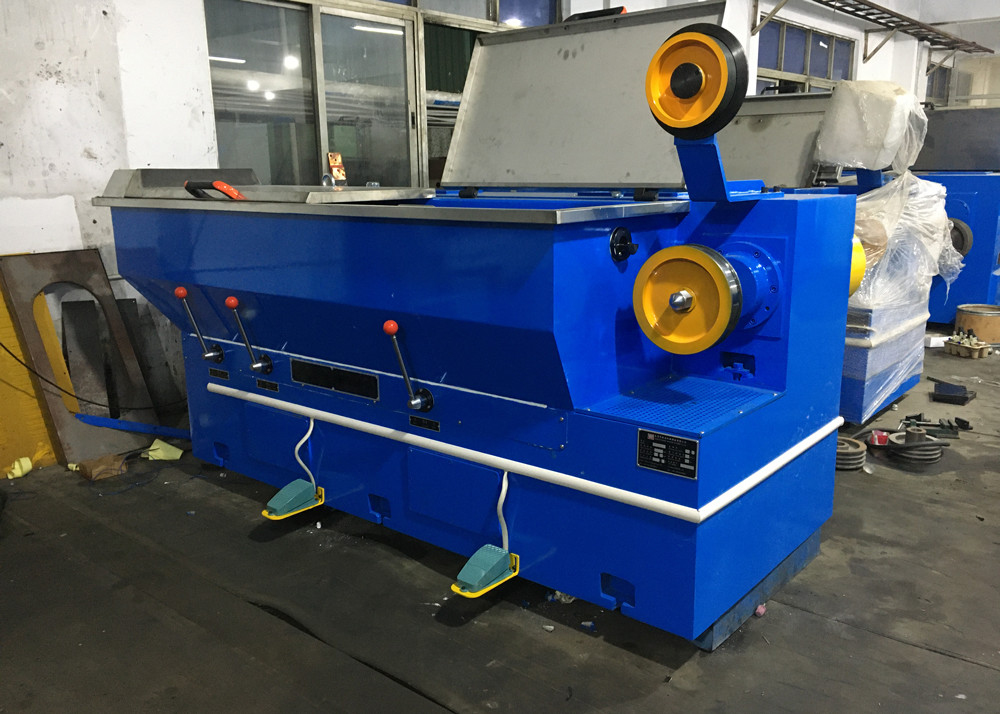

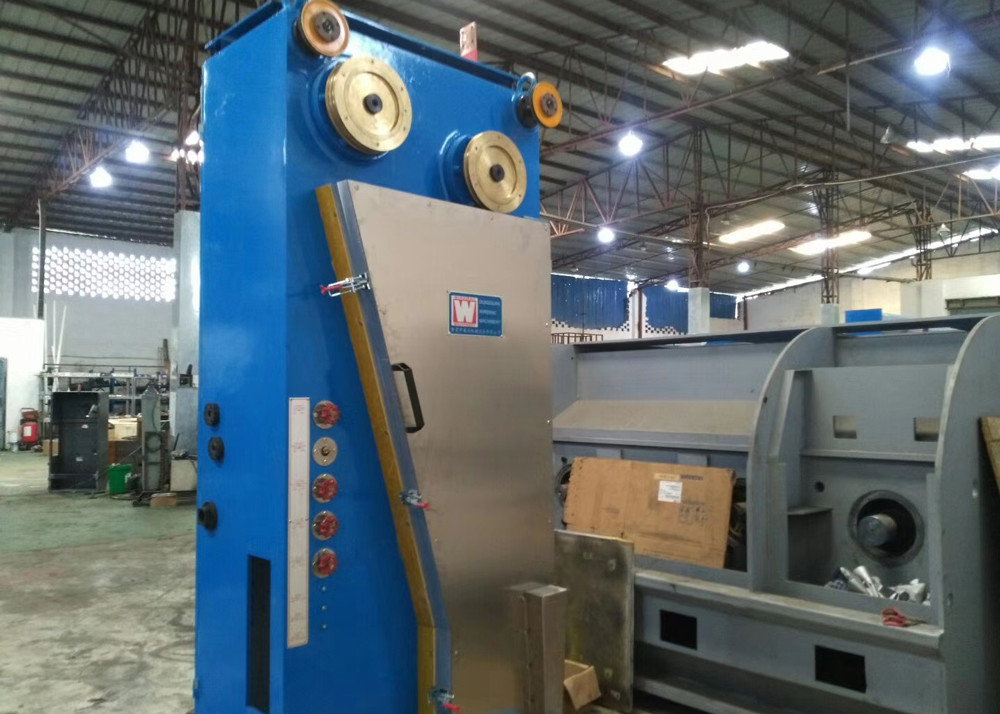

Drawing machine

Main parameters

Machine introduction:

With two motors driven, PLC control the motor speed and production speed.

Using one set of molds, finish size from 3.0-3.5mm stretching to 0.8-2.7mm,

simple structure; large the stretching range ; simple operation.

Using PLC touch screen run the machine according to the set process parameters,

input edit molds and slip parameters, control the mode of equipment,

display the relevant operation data of the equipment. detect and display of machine faults,

machine operational records is storable and readable. stretching by full immersion lubrication,

double tank prevents spillage of molten lubricant, gear drive, mechanical seal gear oil,

cooling and lubricating the gears & bearings through the oil pump after cooling the gear oil.

YUYANG MACHINE Co., Ltd. Was established in Dongguan city which is close to Guangzhou city in the year of 2009.

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, copper drawing machine , coper oven, copper enameling machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;

120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line...

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,

We have engineer who have more than 20 years experience in cable area, who will provide our customer the best suggestion when they are planing building new factory. We will tell you which machine is the best for your cables. And we will give customer’s training when they buy machines from us. We will install the machine, train their workers and give our professional advice for their cable project.

We already help customer to set up new cable factory in some country like Algeria, Nigeria, Sudan, India. . . . And we already sell machines to Pakistan, Egypt. . . . . .

We have good reputation from our customer, and if you need build new factory or add machines in your factory, then contact us, also if you have some problems in your cable production line such as PVC come out, copper is with center deviation , can not get good tension or right twisting pitch, or other problem then contact us too.
