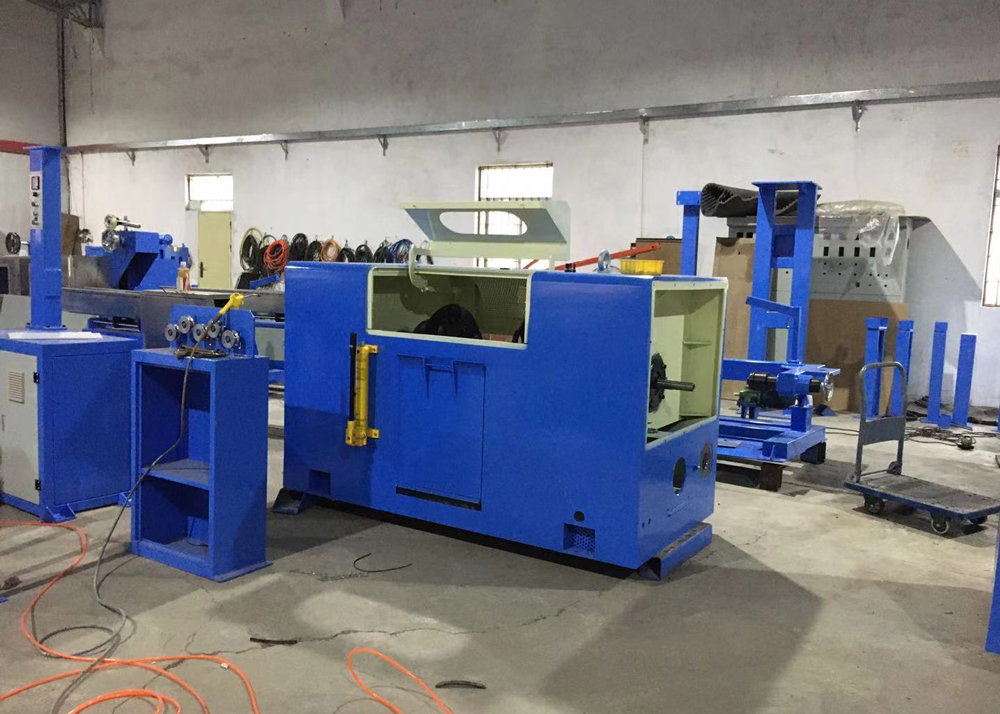

High Speed 800mm Copper Bunching Machine Double Twisting Stranding
Machine For 10mm Cable
I. Application of the equipment: It is suitable for stranding of the copper wires with more than
seven strands, such as electronic wires, power wires, bare copper
wires, network wires, etc.
II. Creel stand (separately charged)
1) Vertical type (with an adjustable tension)
a: It is put on a side of the equipment. It may have 12 or 24
heads. The paying-off tray has a maximum outer diameter of 8″.
2) Horizontal type (with an adjustable tension)
b: It is put on a side of the equipment too. It may have 6 or 12
heads. The paying-off tray has an outer diameter of 400 to 630.
III. Structure of wire entering
1) After being paid off from the creel stand, all the wires will
first enter a distributor plate via a group of idler pulleys and
then the die for stranding.
2) Specification of the distributor plate: Each standard
distributor plate of our company has 19 holes (however,
customization may be done).
3) Specification of the die: Ø25 (outer circle) *15 (height),
customized inner holes
IV. Performance and parameters of the equipment:
Model:
Right-hand model:
The operator faces its front and the wires enter it from its right
side. ( )
Rotation speed of arched band: Max: 1200RPM. The arched band is a
of idler pulley type.
Lay: 22.51mm-152.32mm (it may be properly adjusted as requested by
the customer). It is subject to manual gear-type changes.
Calculation of the stranded length: m/min=lay*2/1000*stranding
speed per minute
Direction of lay: Leftward or rightward
Suitable diameter: 4mm²-10mm²
Ground and line diameter: Ø2.0-Ø15
Wire arrangement: German type polished rod wire arranging device
with adjustable throw of traverse and distance
Spindle lubrication: Manual grease feeding through a grease gun
Driving motor: It consists of an AC 380V 1400RPM The Siemens motor
for driving 15HP 15HP YASKAWA converter and can realize stepless
speed regulation.
Braking: electromagnetic brake that can realize automatic braking
through internal and external disconnection
Disconnection protection: Automatic stop and alarming upon internal
and external disconnection
Inching: The inching button on the exterior of the electric console
Speed display: The tachometer on the control panel
Electrical control: The setup and operations of the electrical
parameters of the equipment are all done through the control panel.
External power line: The user should connect the external power
line with the electric cabinet.
Alarm light: Red
Meter counter: Six-digit electronic meter counter
Electric elements: National or international famous brands
Bearings: Bearings imported with original packaging from Japan and
Germany (such as KOYO, NSK and FAG)
Internal accessories: National or international famous brands
Noise: ＜ 75dp (measured 1000mm away)
Ambient humidity: ≤ 90% (if it is larger than 90%, dry it by
blowing before starting the equipment)
Workshop temperature: ≤40℃ (if it is higher than 40℃, the converter
will undergo automatic protecting tripping)
Floor area: L3100*W1800*H1800MM
Color of the housing: Apple green (as requested by the customer)
V. Wire rewinding structure
1) Bobbin: Standard bobbin: (outer diameter) Ø800* (outer width)
600* (inner hole) Ø80; pine hole: Ø40; distance to the bobbin hole:
160mm (max.) or 120mm (min.)
2) Tension: There is a manual mechanical tension regulation system
that is mainly used for regulating the pressures of springs.
3) Loading and unloading of the bobbin: The bobbin has a
hydraulically hoisted iron shaft and can therefore be loaded and
unloaded conveniently and flexibly.
VI. Standard accessories
Change gears (one set) (they are corresponding to the pitch gauge
and their quantity may be properly increased or decreased as
requested by the customer)
Tool kit (one piece) (There is a set of common tools. The details
are as follows.)
1. Nine-piece inner hexagon spanner (one set)
2. Monkey spanner (one piece)
3. Screwdriver (one piece)
4. Nipper pliers (one pair)
5. Grease gun (one piece)
