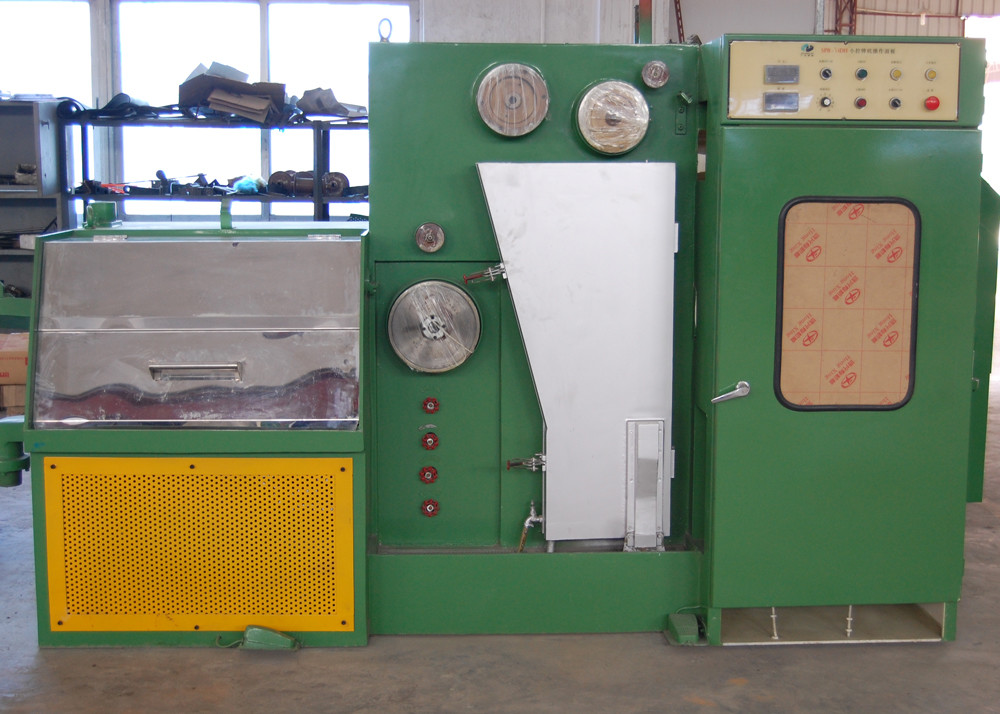

High Speed 14D Copper Drawing Machine From 1.6 Mm To 0.2mm

this machine is for making copper from 0.8-1.6mm to 0.2-0.5mm

A: Equipment feature

1. Function: copper wire drawing with annealer

2. Inlet wire :Φ0.8-1.6 mm .

3. Outlet wire:Φ0.2-0.5mm.

4. Machine speed: 1200MPM/Max.

5 . Eye mould quantity :14 pc(Max)

6. Machine reduction rate :dies(from number 1 to 13) 15.5%; number 14:20%

7.drawing way: Horizontal two axis lubrication ;

8 Drawing lubrication: immersion: Spray lubrication

9.independent take up and independent annealer (customer can use them for different product)

10.power :

(1) Drawing main power 18.5KW and inventor control

(2) Take up power : 5KW and inventor control

11. Anneal power :30KVA

12.Anneal current:500A/Max

13.Anneal voltage: 70V

14. Anneal method :triangle short circuit DC touch type annealing, auto tracking

15. Transmission part: the whole machine drive relay on flat belt drive.

16. Cooling water: 5～8m³/h

17. Stretching pulley:Drawing pulley spraying tungsten surface

18. Stretching Machine lubrication:need 60L oil every1 min

19. Using spool:spool size ￠300mm (max).

20. Traverse unit: With type electromotor motor rowing wire, horsepower 110W,

YUYANG MACHINE Co., Ltd. Was established in Dongguan city which is close to Guangzhou city in the year of 2009.

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, copper drawing machine , coper oven, copper enameling machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;

120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line...

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,

We have engineer who have more than 20 years experience in cable area, who will provide our customer the best suggestion when they are planing building new factory. We will tell you which machine is the best for your cables. And we will give customer’s training when they buy machines from us. We will install the machine, train their workers and give our professional advice for their cable project.

We already help customer to set up new cable factory in some country like Algeria, Nigeria, Sudan, India. . . . And we already sell machines to Pakistan, Egypt. . . . . .

We have good reputation from our customer, and if you need build new factory or add machines in your factory, then contact us, also if you have some problems in your cable production line such as PVC come out, copper is with center deviation , can not get good tension or right twisting pitch, or other problem then contact us too.
