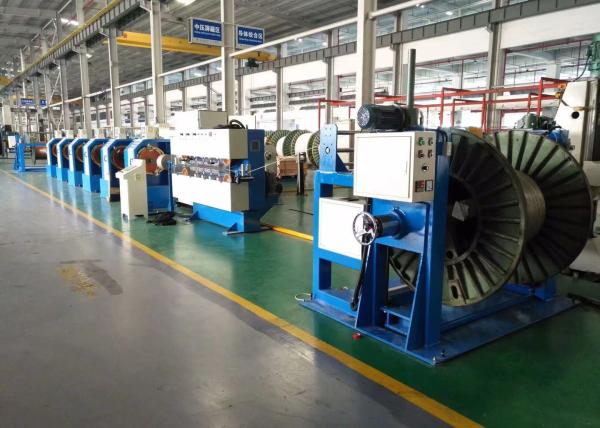

Ⅰ.This machine is good used for twisted copper cable and nickel cable single layer or 3 layer taping

Ⅱ.Main specifications

• Max RPM speed:MAX2000RPM(the different cable different speed)
• Max wire speed:MAX 30m/min(the different cable different speed)
• wire / copper specifications : Φ1-5mm
• the package with materials : glass fiber , mica , aluminum foil tape , Mylar tape , tissue tape , transparent tape
• package specifications : Φ300 ( maximum outer diameter ) * 20 ( maximum outer width ) * 75 ( the hole )
• the package belt tension : 300-800gf adjustable
• the machine color : according to customer requirements
• the operation direction : according to customer requirements
• the machine voltage : 380V three-phase

Ⅲ.Main spare parts

1. 630 no shaft vertical pay off + 1 station Tension

2. horizontal three layer package

3.300 double wheel capstan

4.500-600 no shaft take up

5.PLC control system

6.Free spare parts

YUYANG MACHINE Co., Ltd. Was established in Dongguan city which is close to Guangzhou city in the year of 2009.

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, copper drawing machine , coper oven, copper enameling machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;

120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line...

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,

We have engineer who have more than 20 years experience in cable area, who will provide our customer the best suggestion when they are planing building new factory. We will tell you which machine is the best for your cables. And we will give customer’s training when they buy machines from us. We will install the machine, train their workers and give our professional advice for their cable project.

We already help customer to set up new cable factory in some country like Algeria, Nigeria, Sudan, India. . . . And we already sell machines to Pakistan, Egypt. . . . . .

We have good reputation from our customer, and if you need build new factory or add machines in your factory, then contact us, also if you have some problems in your cable production line such as PVC come out, copper is with center deviation , can not get good tension or right twisting pitch, or other problem then contact us too.
