Main features of machine

1. Apply cable Diameter: Φ5 mm～Φ50 mm, (for it is for 1.5,2.5,4, 6,10,16)

2. Screw Diameter: the screw diameter is 100 mm.

3. Extrusion Capacity (when the head is turned on): Φ100 Machine=max350 kg/h

4. Linear Velocity: 200～500 m/min

5. Length of Production Line: 24 m

List of machine

Brand of parts

1. Temperature control: RKC (Japan)

2. Bear: NSK (Japan)

3. PLC (Siemens)

4. Motor: Service motor, Siemens

5. Reducer:CPG (TaiWan)

6. AC convertor (YASKAWA)

7. Button: Schneider

8. Contactor: YangMing(TaiWan)

9. Intermediate relay: OMRON

10. Meter count: YangMing(TaiWan)

11. Magnetic powder clutch: Chinese Brand

12. Machine Body: A3 with annealing process

13: Control box: A3

13. Water tank: stainless steel

100mm Extruder

Applicable Material: PVCE, Plasticization degree of 100%.

Maximum Extrusion Capacity: 350kg/hr.

Finished wire diameter: 6—50mm

Mechanical Center Height: 1000mm

Ratio of Length and Diameter: 1:25

Compression Ratio: 1:2.8

Material of Screw: One Ø100mm, Rotation Rate of Screw: 0—70RPM,

screw with whole tooth nitrogen treatment of alloy steel and chrome-plated polished surfaceMaterial of Screw Cylinder: 38CrMoA1A alloy steel, nitrogen treatment and precisely grinding. The surface hardness inside the screw cylinder is R2-3 degree higher than that of the front surface of the screw and the screw thread.Gearbox: Imitation of Italian-type, hardened helical gear gearbox, material of cast steel, oil-bath lubrication, tooth-face high-efficiency quenching and adoption of Japanese NACHI bearing.

Electric Heating: total 380V, with even three-phase separated flow.Screw cylinder electric heating zone 5, the cast aluminum heating ring heating is affixed with cooling air duct.

Head electric heating zone 1, heating by cast aluminum heating ring.

Machine neck electric heating zone 1, electric plate heating

Eye die electric heating zone 1, heating by the electro-thermal tablets.

Cooling: Screw cylinder zone 5, use 5 sets of cooling fans.Control of Temperature: Use the PID automatic temperature control gauge made in Yangming, Taiwan, automatically set the control under 0-399℃ and use KTYP as the thermal-couple.

Machine head clamping: Using a ratchet quick wrench, chain drive double clamp.

Host Motor: 75kw.SIMENS motor YASKAWA invertor

Head clamping: using a ratchet quick wrench, chain driven double clamping.

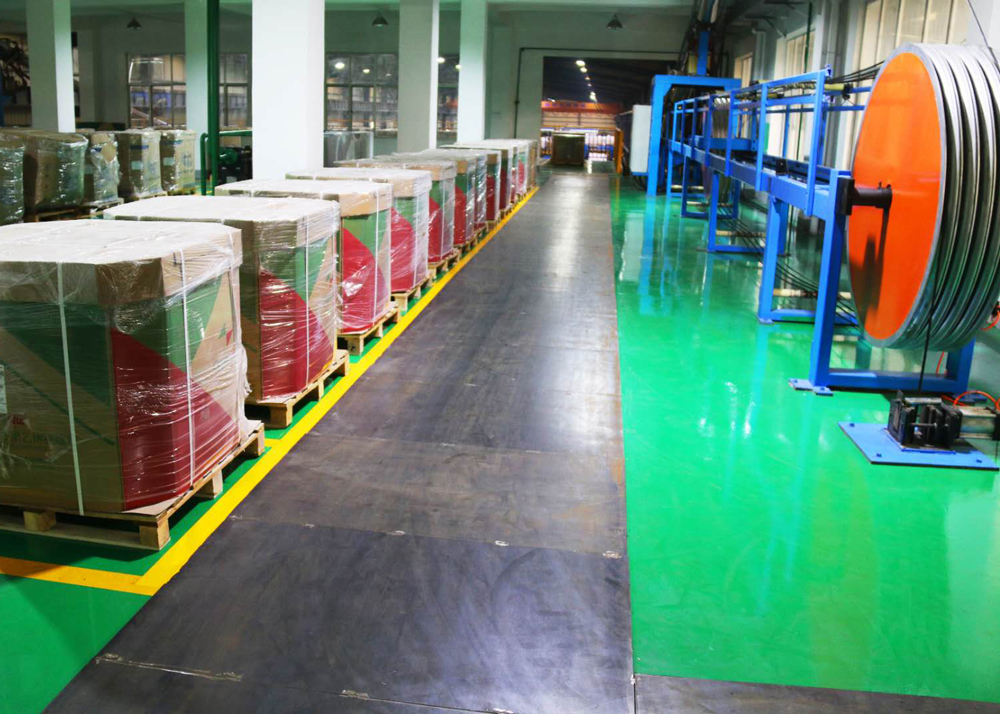

pictures

YUYANG MACHINE Co., Ltd. Was established in Dongguan city which is close to Guangzhou city in the year of 2009.

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, copper drawing machine , coper oven, copper enameling machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;

120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line...

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,

We have engineer who have more than 20 years experience in cable area, who will provide our customer the best suggestion when they are planing building new factory. We will tell you which machine is the best for your cables. And we will give customer’s training when they buy machines from us. We will install the machine, train their workers and give our professional advice for their cable project.

We already help customer to set up new cable factory in some country like Algeria, Nigeria, Sudan, India. . . . And we already sell machines to Pakistan, Egypt. . . . . .

We have good reputation from our customer, and if you need build new factory or add machines in your factory, then contact us, also if you have some problems in your cable production line such as PVC come out, copper is with center deviation , can not get good tension or right twisting pitch, or other problem then contact us too.
