High Speed Cable Extruder Extrusion Machine Low Voltage Wire Packing Production Line

Main features of machine

1. Apply cable Diameter: Φ1 mm～Φ10 mm, (the best suitable size is 1.5 square mm and 2.5 square mm)

2. Screw Diameter: the screw diameter is 70 mm.

3. Extrusion Capacity (when the head is turned on): Φ70 Machine=max140 kg/h

4. Linear Velocity: 200～400 m/min

5. Length of Production Line: 26 m

6. Installed Capacity: about 140kg/h

7. Total Power: 40KW

List of machine

Brand of parts

1. Temperature control: RKC (Japan)

2. Bear: NSK (Japan)

3. Motor: Service motor, Siemens

4. Motor: Service motor, Siemens

5. Reducer:CPG (TaiWan)

6. AC convertor (YASKAWA)

7. Button: Schneider

8. Contactor: YangMing(TaiWan)

9. Intermediate relay: OMRON

10. Meter count: YangMing(TaiWan)

11. Magnetic powder clutch: Chinese Brand

12. Machine Body: A3 with annealing process

13: Control box: A3

14.Water tank: stainless steel

Accessory Parameters

Pay off machine

1,type:Double pay-off stand has axial type tension

2,The wire disc lift:Leveraged energy design

3,trunnion:PD400-630

4,Tension unreeling device: Pay-off tension spring is adjustable

Price: 32,000USD

Payment:60% as advance, 40% before shipping

Deliver time: 30 days after advance

Warranty:1.0year (start from the day when the machine is running in Customer’s factory)

Installation: we will send you one engineer to install the machine in customer’s factory but customer should pay the flight ,hotel, food and salary( 80usd per day).

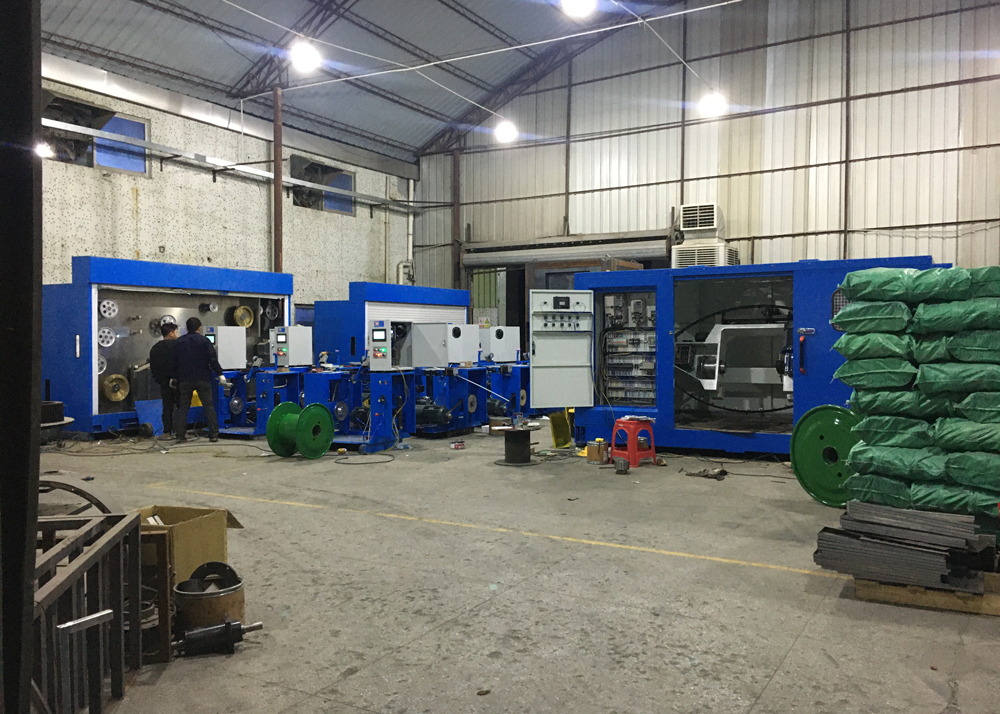

pictures

YUYANG MACHINE Co., Ltd. Was established in Dongguan city which is close to Guangzhou city in the year of 2009.

YUYANG MACHINE is professional manufacturer of cable extruder machine, copper bunching machine, wire twisting machine, copper drawing machine , coper oven, copper enameling machine, cable twisting machine, tapping machine. And we also provide parts like pay off rack, pay off machine, OD testing machine, Cable printing machine , coiling machine, meter count stand, caterpillars, pulling machine, iron bobbin, ABS bobbin.

We make 50 extruder line, 70 extruder line, 80 extruder line, 90 extruder line, 100 extruder line;

120 extruder line, 150 extruder line, 630 cantilever twisting machine line, 800 cantilever twisting machine line, 1000 cantilever twisting machine line, 1250 cantilever twisting machine line, 1000 bow twisting machine line. 1250 bow twisting machine line, 500 bunching line,630 bunching line, frame twisting machine line, tapping machine line...

We can help customer set up new cable factory, we can provide new production line for CAT5&6 internet cable, television TV cable, house wire, power cable, fire cable, automotive wire,

We have engineer who have more than 20 years experience in cable area, who will provide our customer the best suggestion when they are planing building new factory. We will tell you which machine is the best for your cables. And we will give customer’s training when they buy machines from us. We will install the machine, train their workers and give our professional advice for their cable project.

We already help customer to set up new cable factory in some country like Algeria, Nigeria, Sudan, India. . . . And we already sell machines to Pakistan, Egypt. . . . . .

We have good reputation from our customer, and if you need build new factory or add machines in your factory, then contact us, also if you have some problems in your cable production line such as PVC come out, copper is with center deviation , can not get good tension or right twisting pitch, or other problem then contact us too.
